HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650
HONDA TEMP GAUGE KIT - CX500 GL500/650

HONDA TEMP GAUGE KIT - CX500 GL500/650

$79.00
( / )
(5.0)
Product details

Need a water temperature Gauge? This kit is designed to replace the bulky Honda water temperature gauge and fit the new gauge on top of the backbone of your frame for easy visibility, but it is still out of sight enough for a clean-looking cockpit.

This gauge fits perfectly in the gap between your tank and your steering stem like it was made for it.

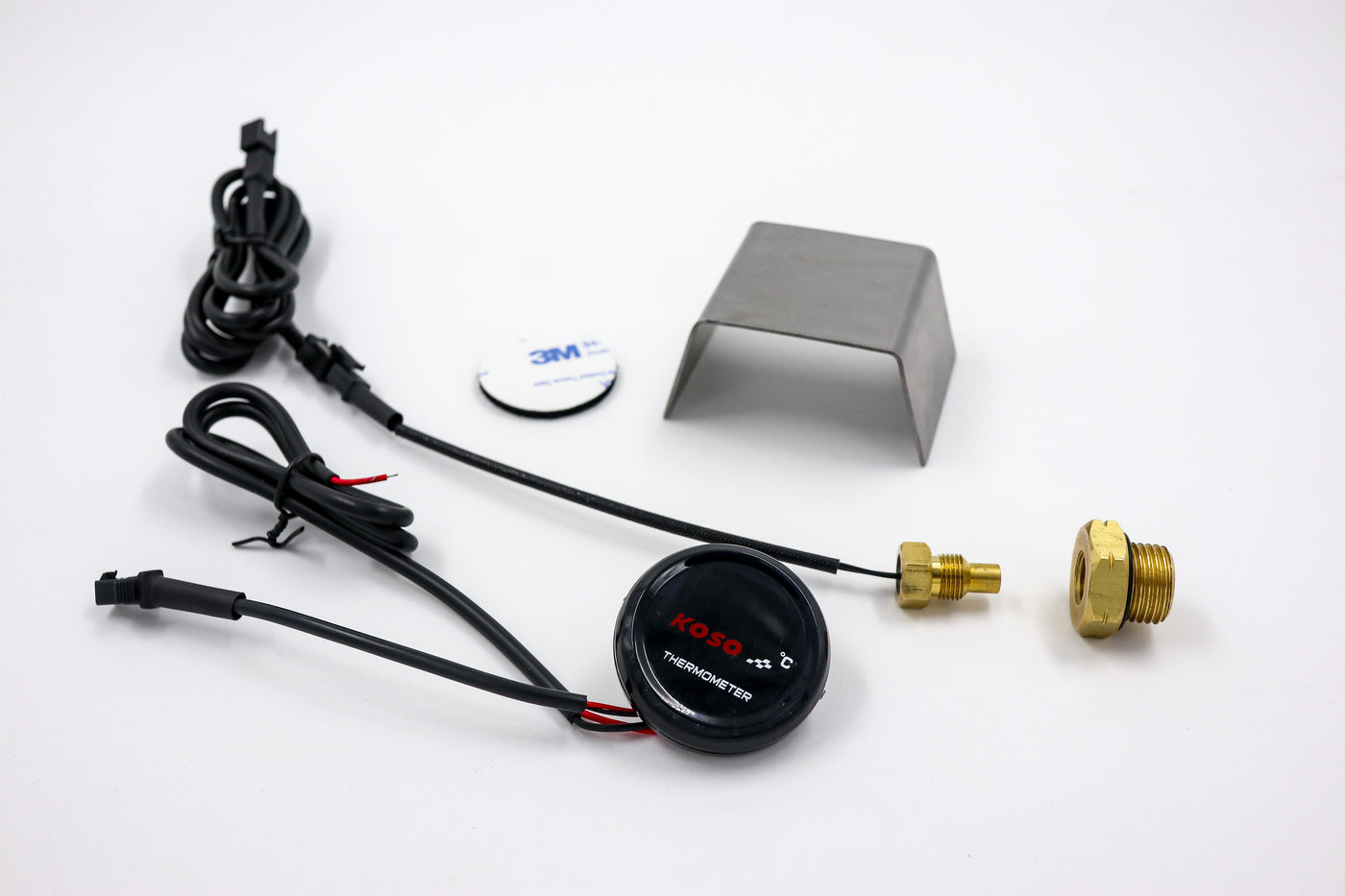

Kit includes:

1 x KOSO water temperature gauge with sensor.

1 x brass adapter, This will be used to install the new sensor.

1 x Steel bracket designed to fit perfectly on the Honda CX500 GL500/650. (Simply weld or screw this bracket in place)



Install instructions:

Connect 12v power to the positive wire or the gauge, now ground to the negative wire, remove the old sensor with a 17mm socket and replace it with the new brass adaptor than screw in the new sensor and be sure to use teflon tape or a heat proof thread lock liquid.

Click the water sensor wires together with the male and female plug and it come with.

The bracket:

Ths bracket is made of steel so it can be welded directly to your frame, but if you don't have a welder you can easily screw or rivit it in place.

3m double-sided tape is provided to fix the gauge to the bracket

Need a water temperature Gauge? This kit is designed to replace the bulky Honda water temperature gauge and fit the new gauge on top of the backbone of your frame for easy visibility, but it is still out of sight enough for a clean-looking cockpit.

This gauge fits perfectly in the gap between your tank and your steering stem like it was made for it.

Kit includes:

1 x KOSO water temperature gauge with sensor.

1 x brass adapter, This will be used to install the new sensor.

1 x Steel bracket designed to fit perfectly on the Honda CX500 GL500/650. (Simply weld or screw this bracket in place)



Install instructions:

Connect 12v power to the positive wire or the gauge, now ground to the negative wire, remove the old sensor with a 17mm socket and replace it with the new brass adaptor than screw in the new sensor and be sure to use teflon tape or a heat proof thread lock liquid.

Click the water sensor wires together with the male and female plug and it come with.

The bracket:

Ths bracket is made of steel so it can be welded directly to your frame, but if you don't have a welder you can easily screw or rivit it in place.

3m double-sided tape is provided to fix the gauge to the bracket
