High-quality pre-wired handlebar switches with 6 illuminated buttons. A complete solution for anyone who loves a minimalist look. Suitable for 22.2mm or 25.4mm handlebar diameter. Prefabricated 1.8m connection cable for quick and easy installation.
Note: The standard version features white LED buttons, but you can customize each button with your choice of five different LED colours for an additional $50. Custom Colours can take up to 10 business days to process. Please reach out to us with your preferred colour configuration after purchasing this option. info@shopcaferacergarage.com Options: White, Green, Blue, Red, Orange.
Product Details

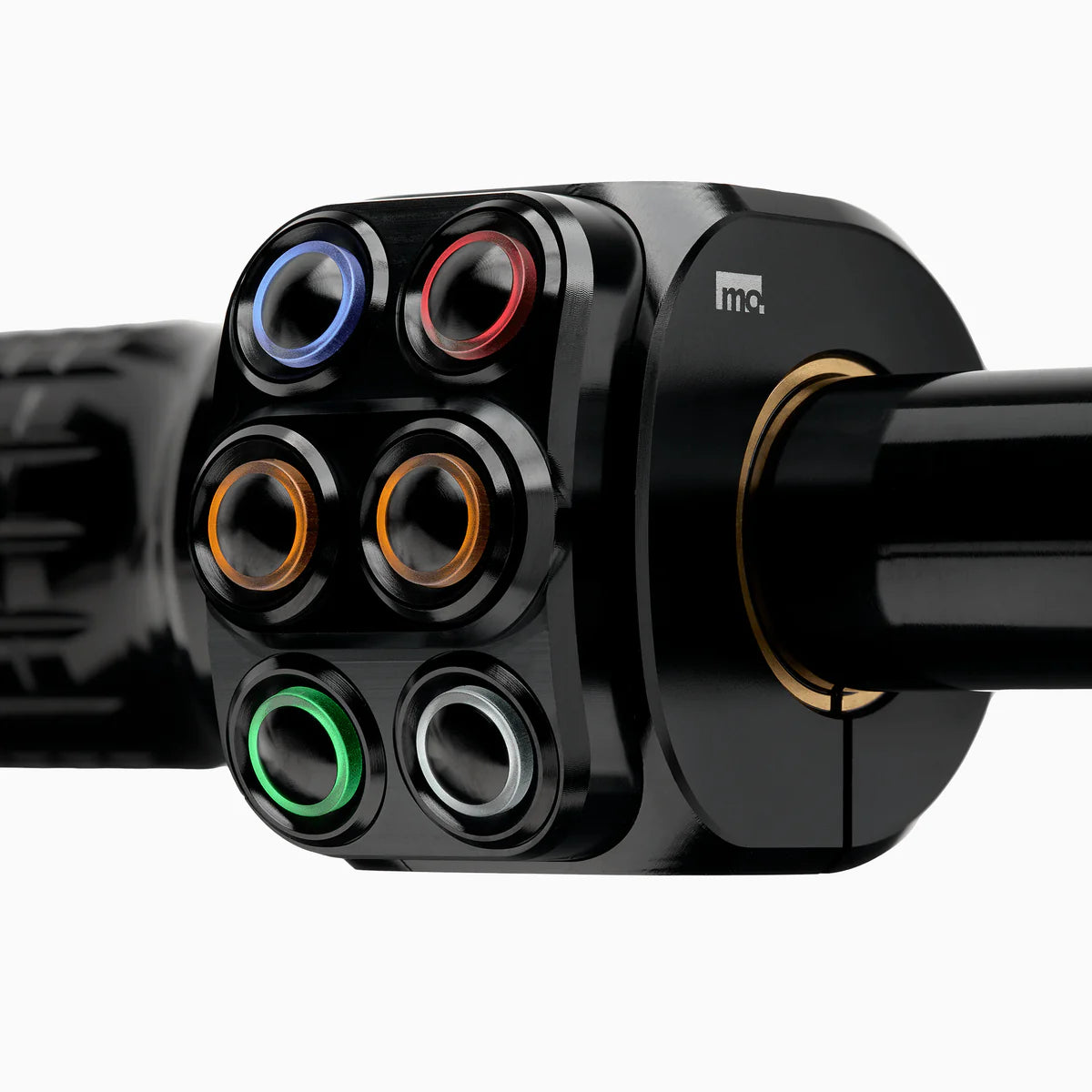

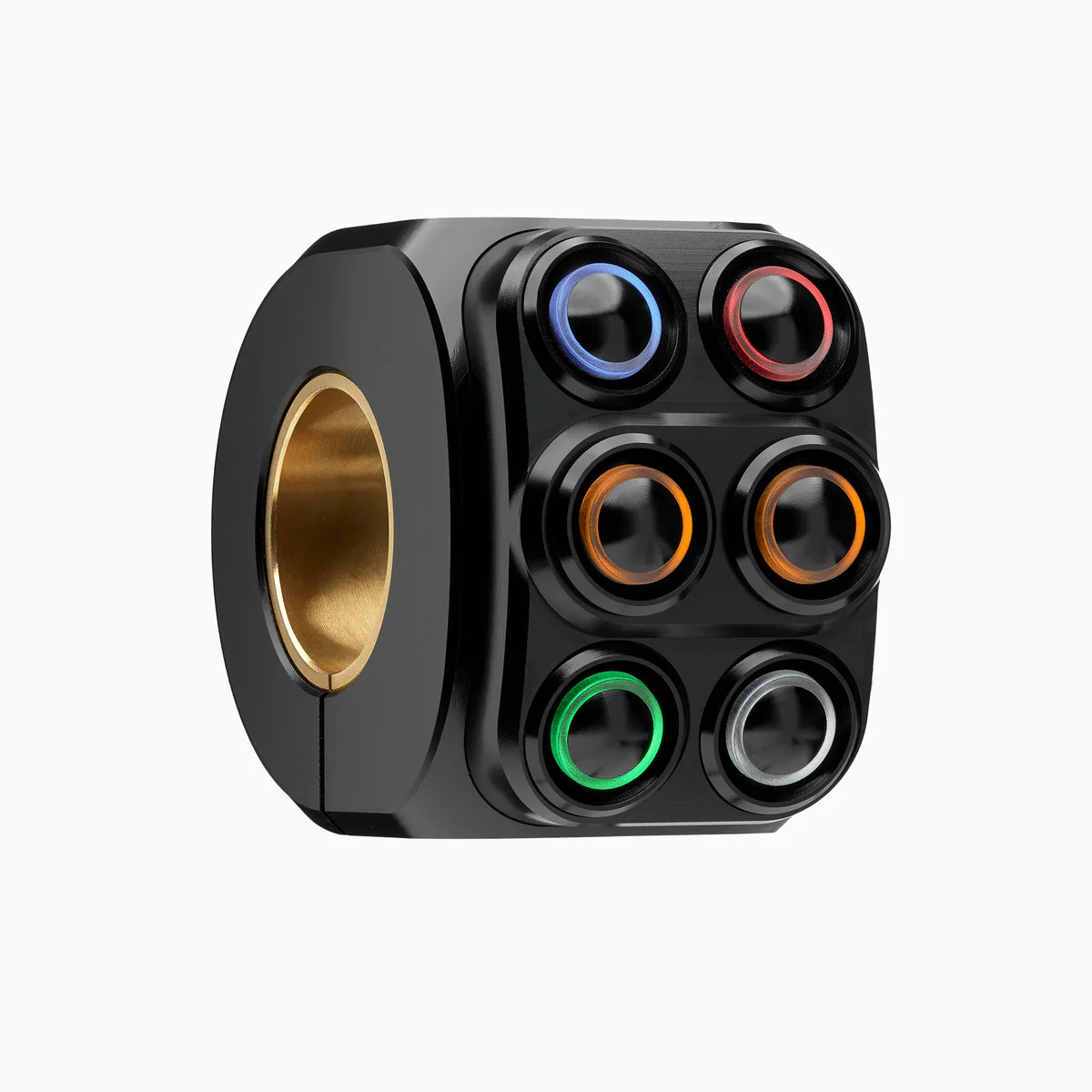

The mo.switch pro is our flagship product. A universal, high-quality switch fitting suitable for handlebar diameters of 22.2 mm or 25.4 mm.
The left-hand pushbutton panel is designed as a complete solution and includes all standard pushbuttons required to control the vehicle.

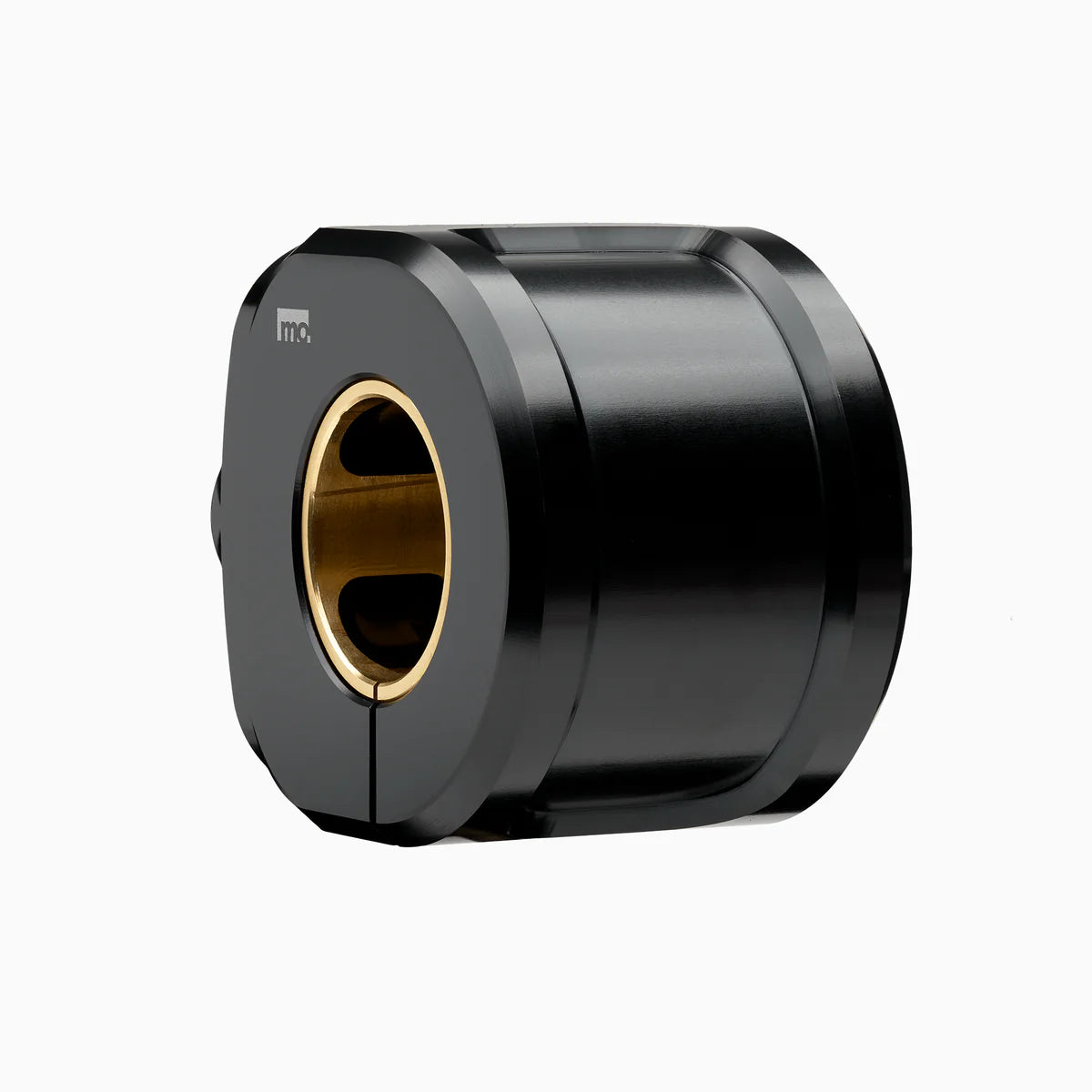

CNC machined from billet aluminum, the housing is black anodized. A hidden M4 stainless steel mounting screw clamps the unit securely to the handlebar.
The two-part design in clamp housing and stylus inlay makes mounting child's play. The supplied handlebar adapter acts here as a drilling template.
The mo.switch pro is "ready to connect". Everything has already been completely wired, as we have already carried out the time-consuming connection of the individual buttons with the respective LED lighting.
The pushbutton unit is waterproof molded on the back and equipped with a highly flexible, black, 8-core cable.
The 1.8m cable is specially manufactured to our specifications, has a low cross-section and is perfect for routing through a handlebar.

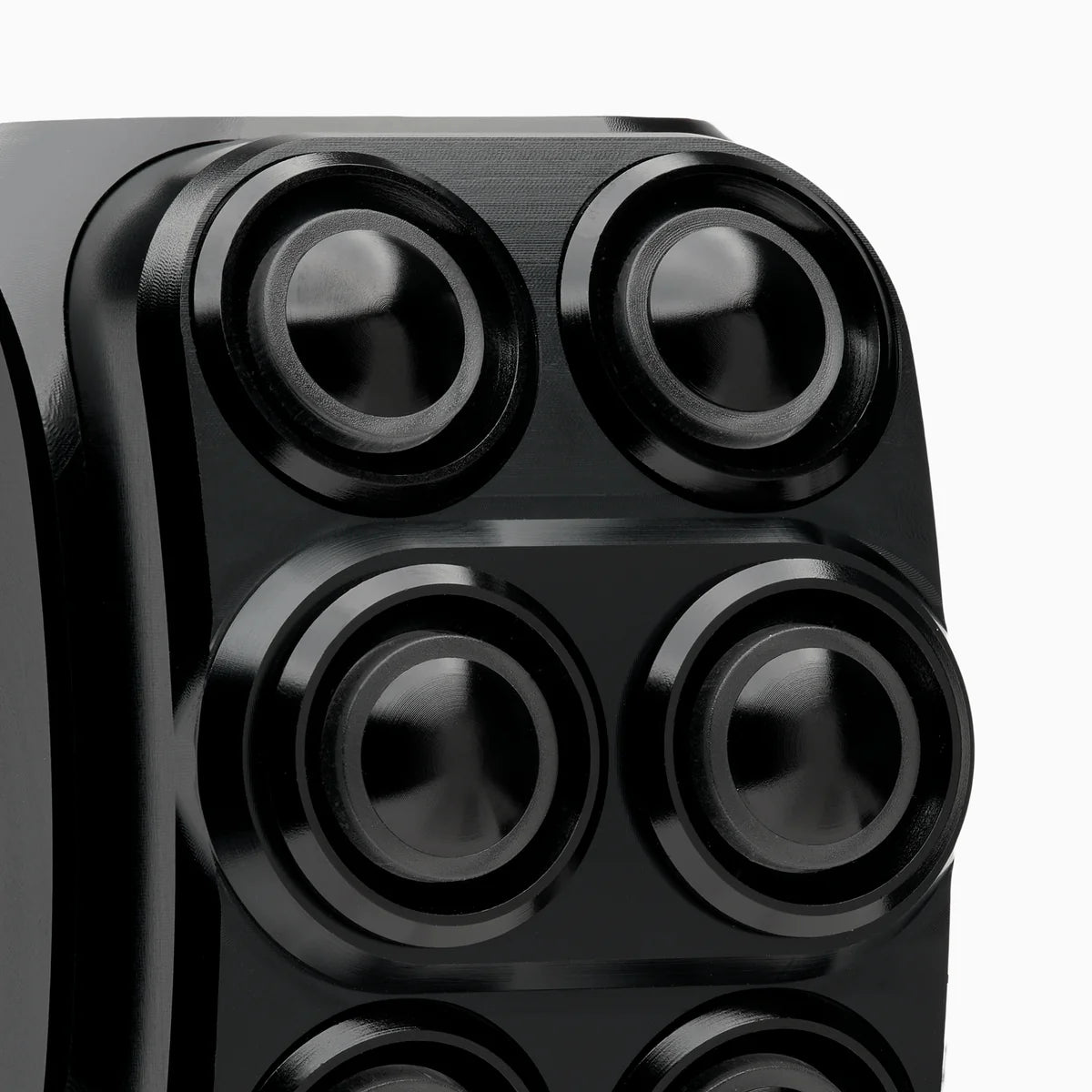

The pushbuttons used are of high quality, vibration resistant and jet water protected according to IP65. The button size and the ergonomic pressure point give an optimal switching feeling when operating with gloves.
Technical Data
- Pushbutton unit pre-wired and waterproof encapsulated
- high quality connection cable with 1.8m length
- jet water resistant according to IP65
- ring-shaped LED illumination of the individual buttons

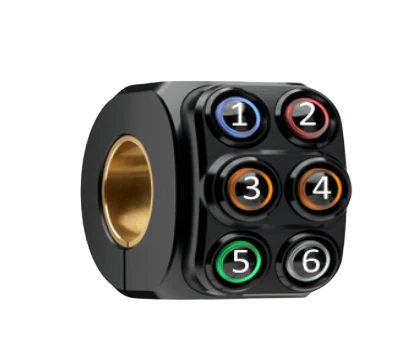

- Button functions: Horn | High beam | Turn signal left & right | Starter | Instrument
- clean look without visible screws
- easy mounting without wiring of individual pushbuttons
- suitable for handlebar diameter 22.2mm (7/8") or 25.4mm (1")
- high quality CNC milled from aircraft aluminum and UV resistant anodized
- Housing color black, button black, button LED colors red, green, blue, white, yellow
- maximum pushbutton switching current: 1A, all pushbuttons switch to ground
- additional switching electronics mo.unit required
- Height 48mm, width 36mm, depth 58mm
