The universal, high-quality pushbutton fitting for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. Available as 2 or 3 button in black or silver. Product Details

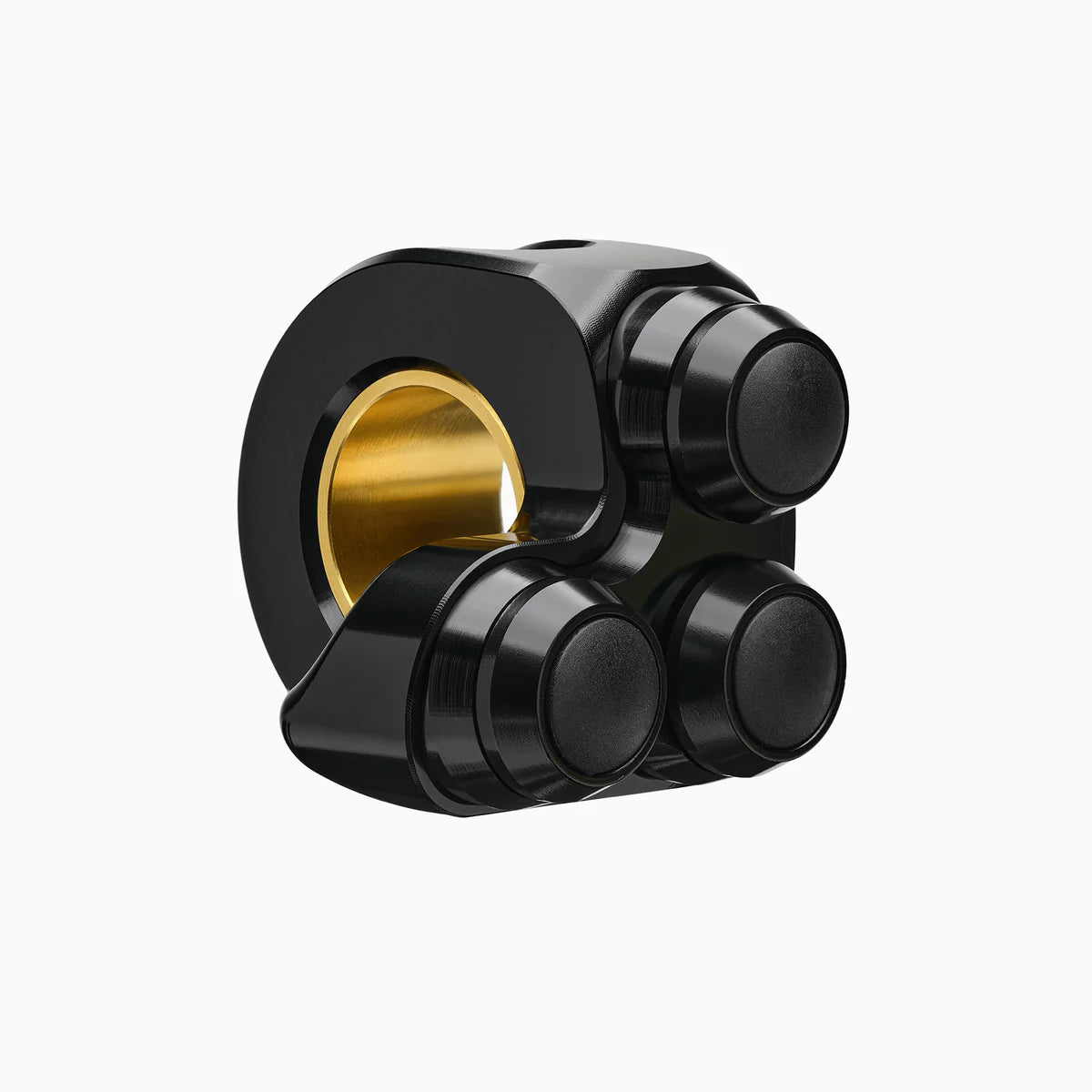

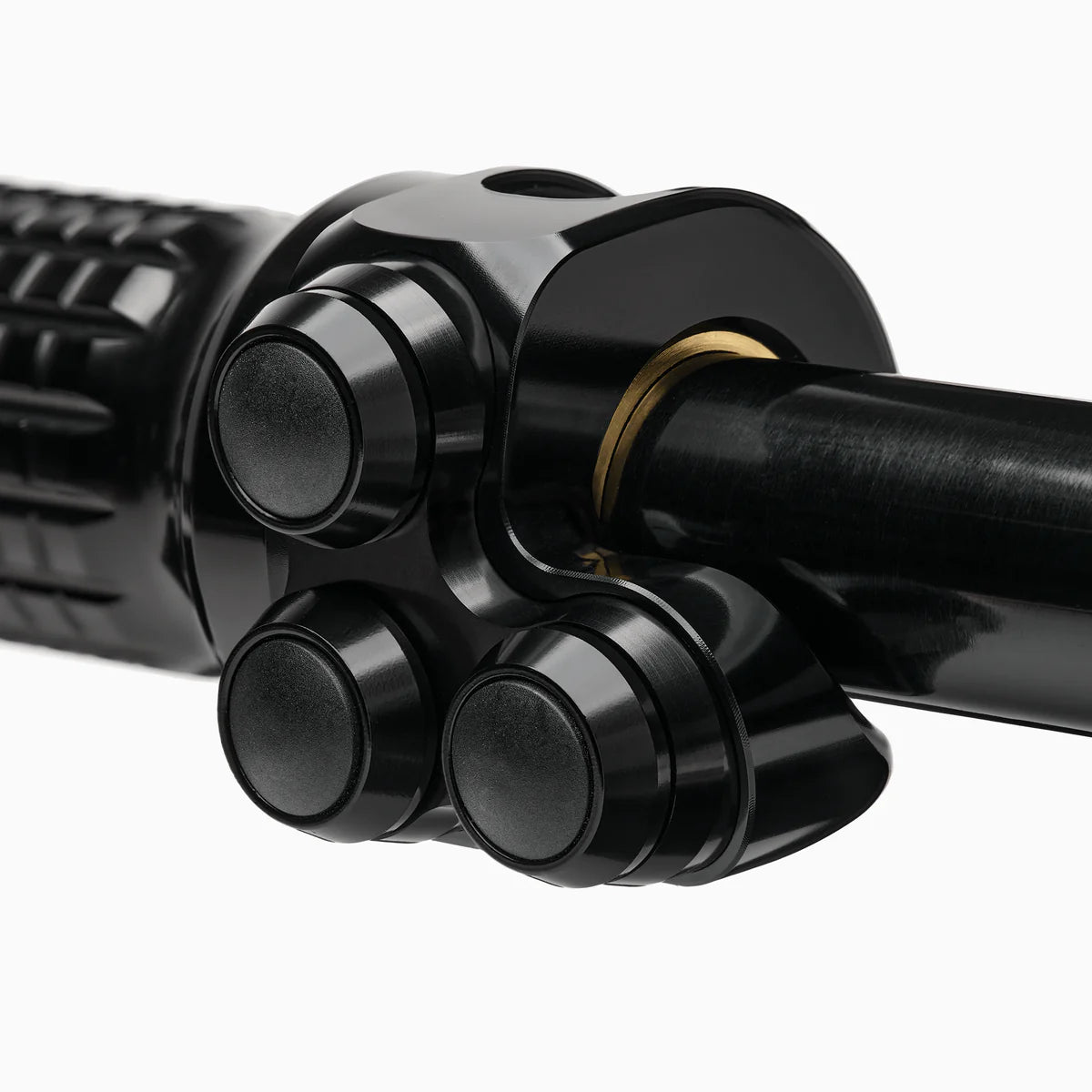

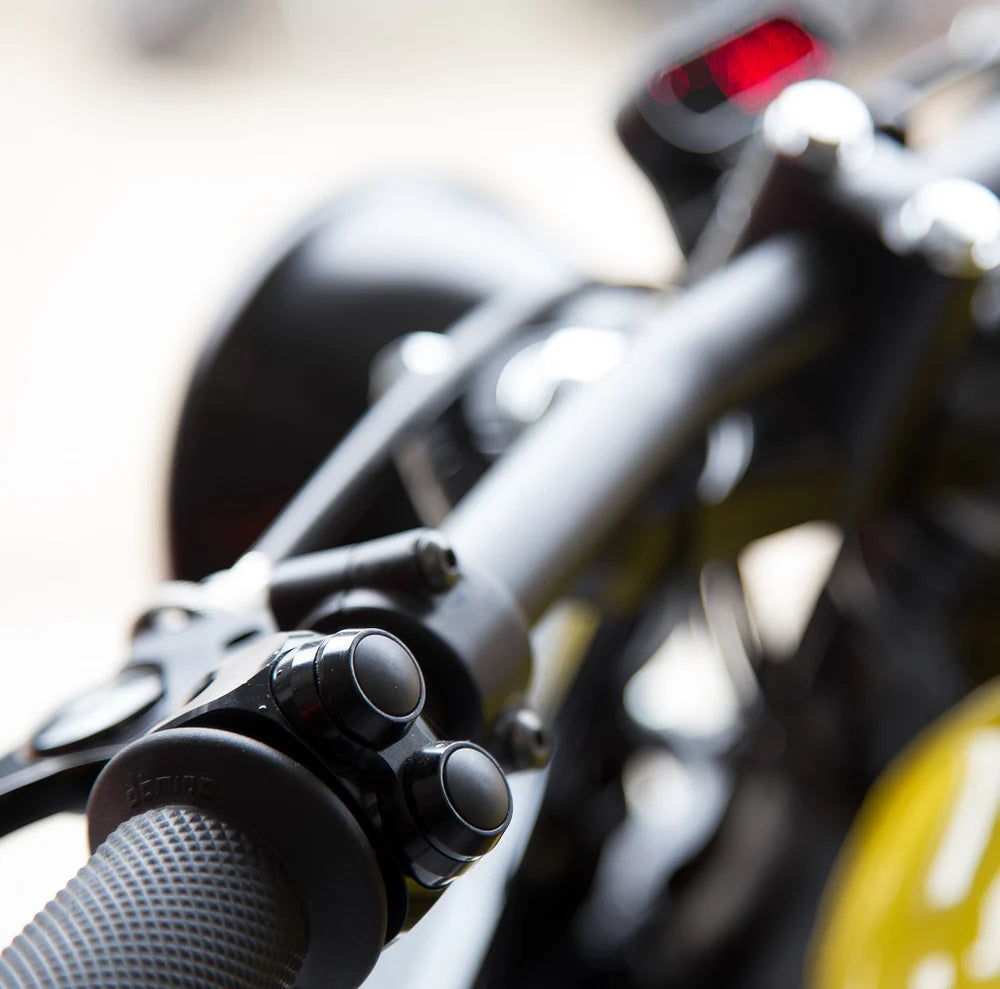

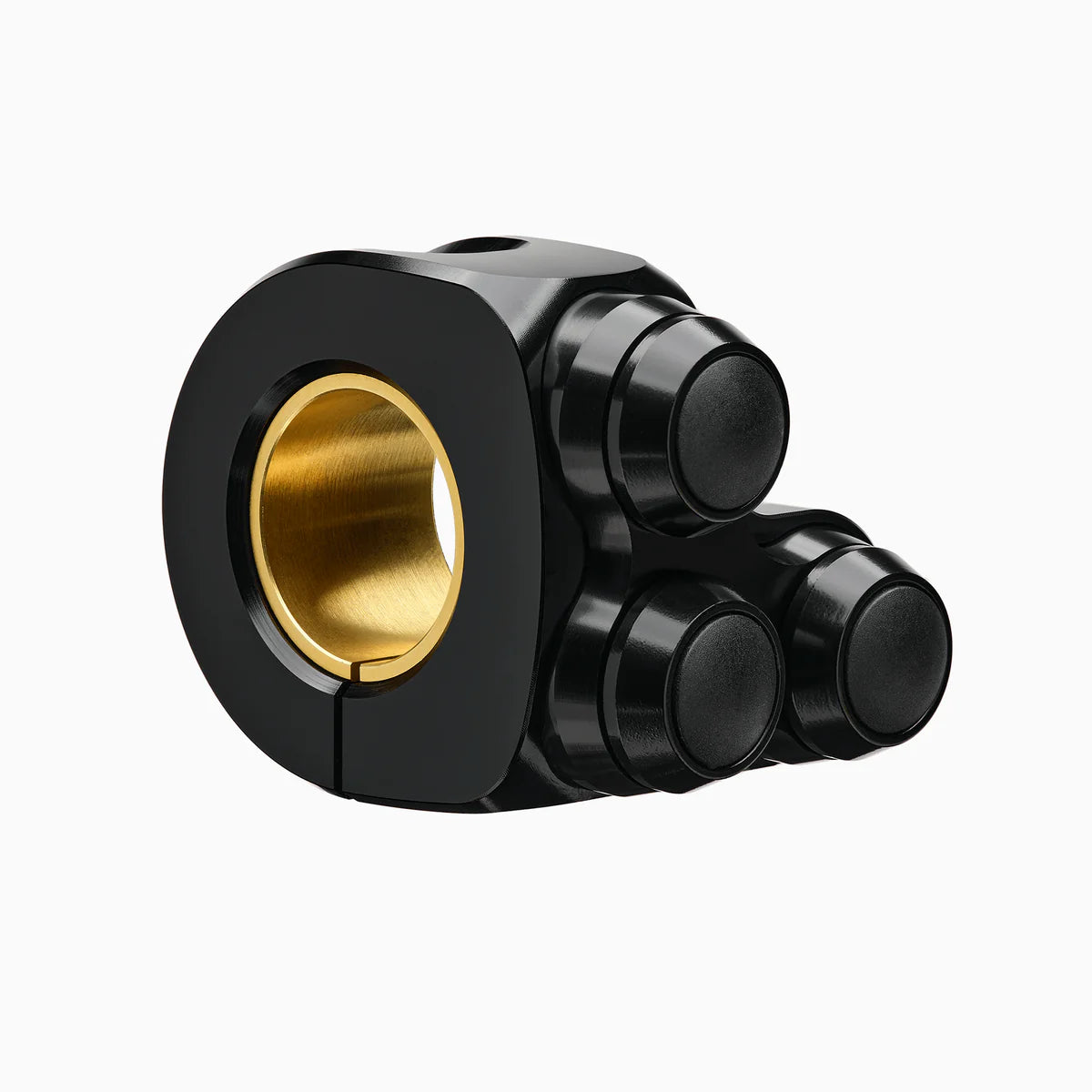

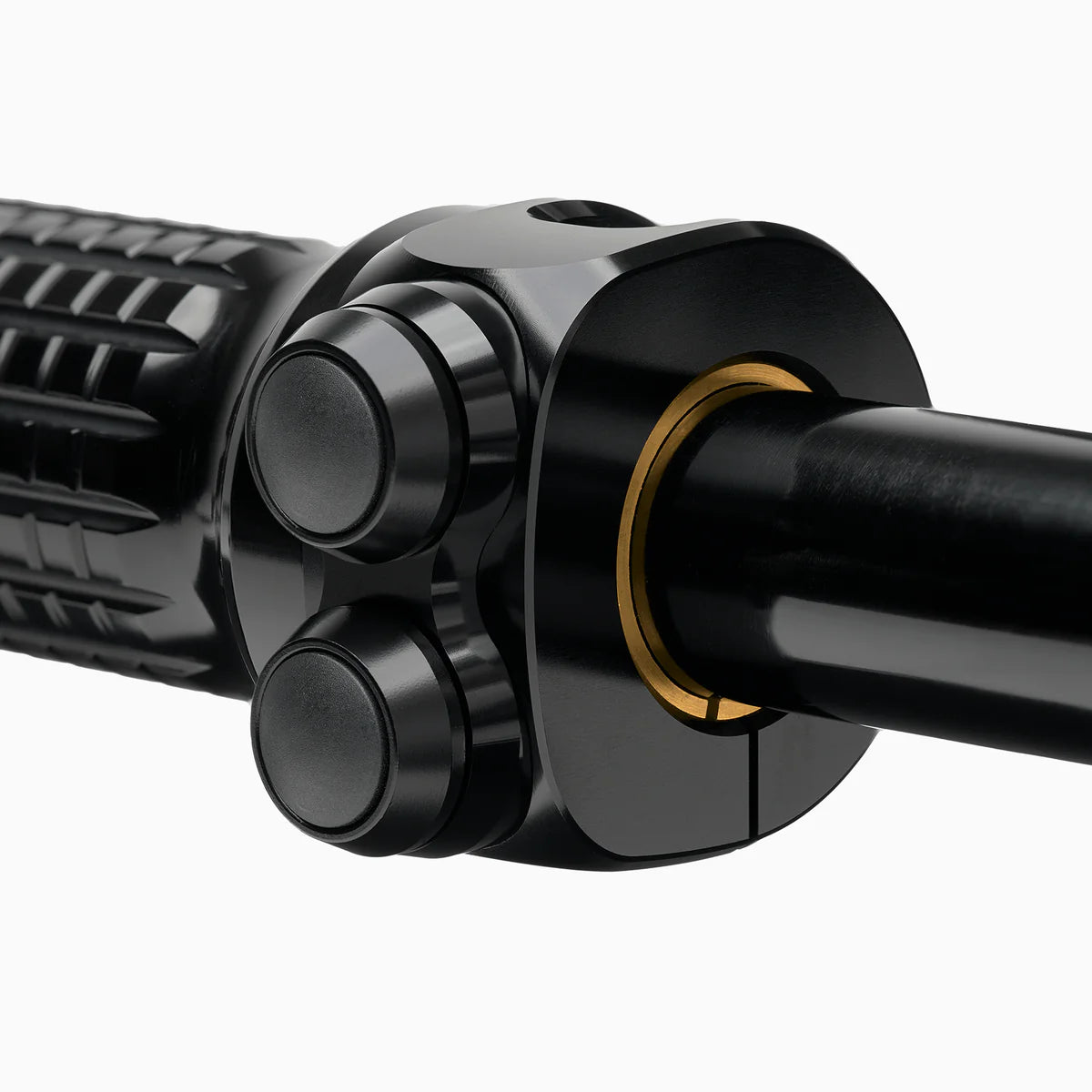

The mo.switch basic is a universal, high-quality pushbutton fitting for handlebars with 1 inch or 22 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic pushbutton control (not included), these CNC-manufactured pushbutton fittings can switch all electrical units such as lights, turn signals, e-starters, horns and much more.

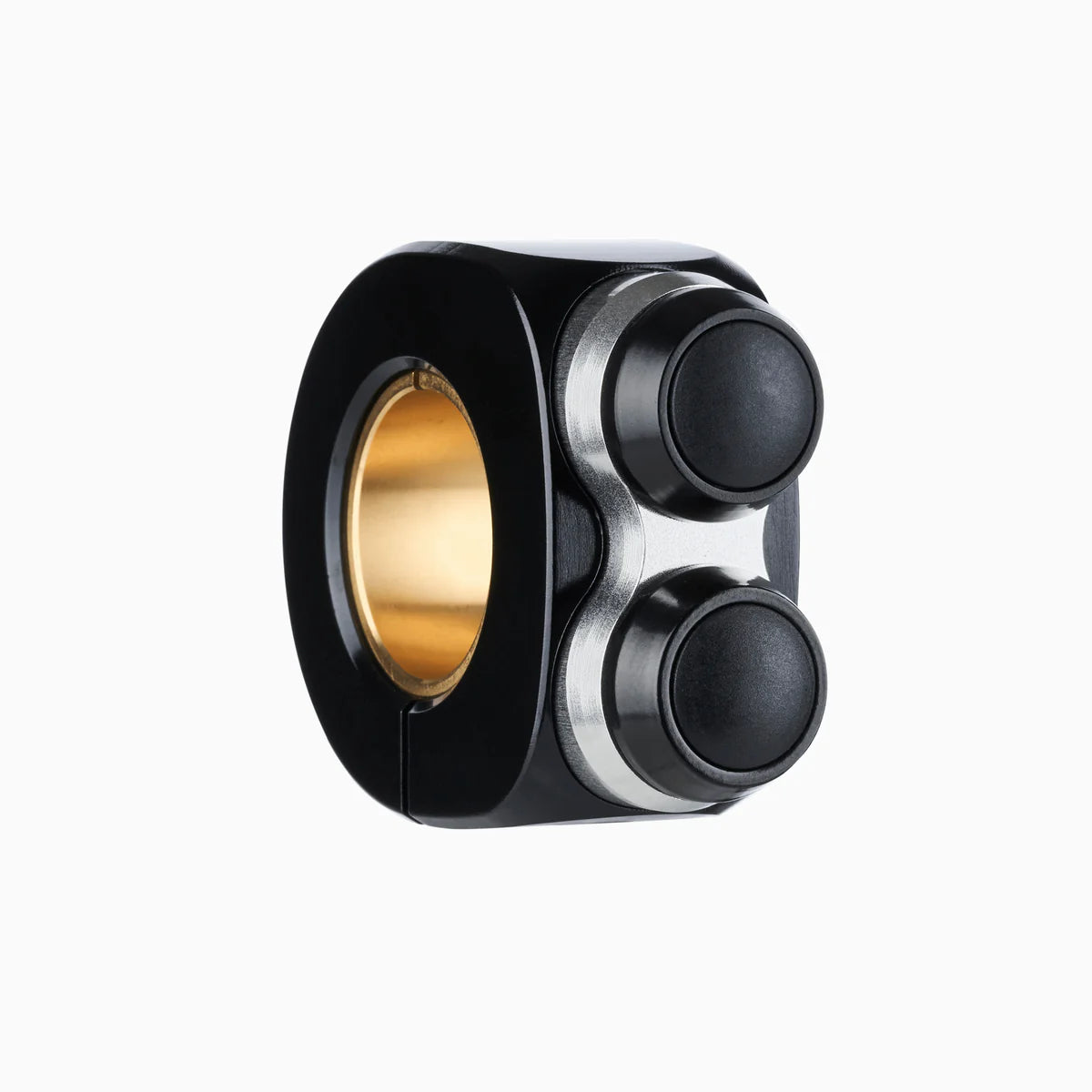

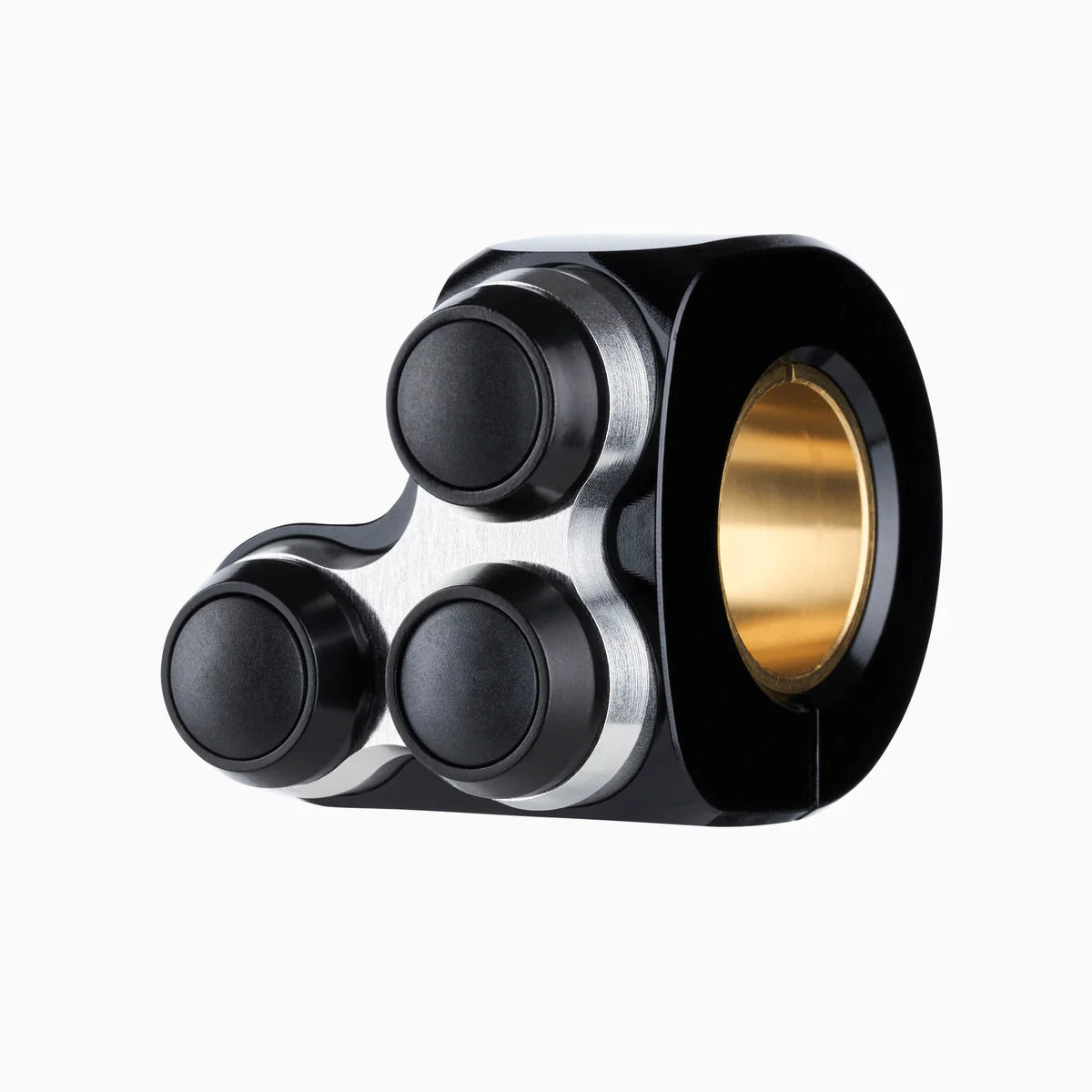

CNC-milled from billet aluminum, the housing is anodized in glossy black. Optionally, the stylus fitting is also available with a silver anodized stylus plate. The compact housing is equipped with either two or three individual pushbuttons. All pushbuttons are always aligned to the driver.

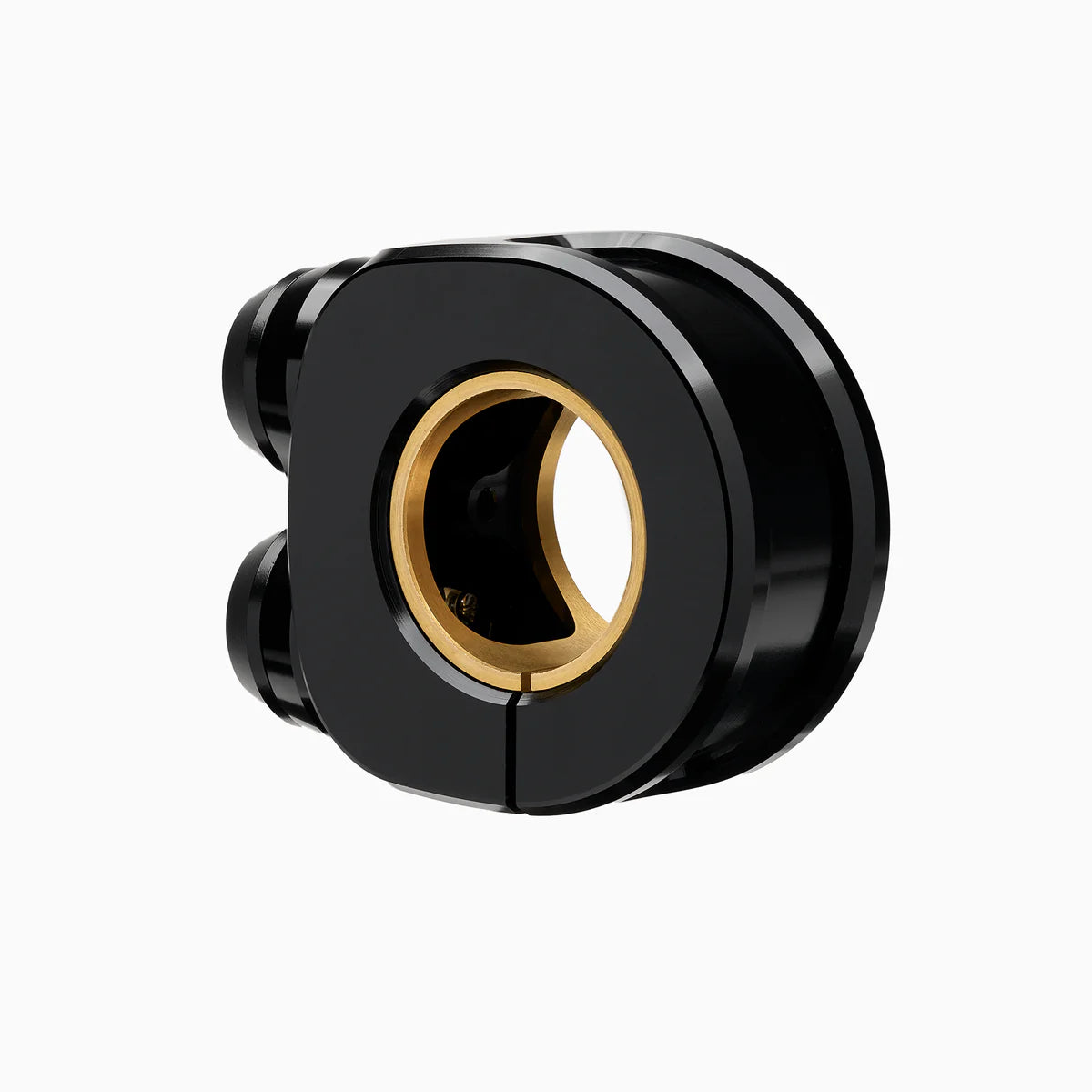

The two or three buttons per unit are always black in color. A hidden M4 stainless steel mounting screw clamps the housing securely and stably to any handlebar.
The individual pushbuttons are of high quality, very robust and protected against vibration and splash water (IP65).
Due to sufficient size and ergonomic pressure point (light, mechanical detent), they enable a safe switching feeling during operation - even when operated with a glove.
Due to two connections per pushbutton, a one-wire or two-wire circuit is easily possible. A connection for ground is already provided internally for the one-wire circuit. A cable routing in the handlebar is therefore easy to perform.
In case of possible damage, the pushbuttons are individually available and replaceable. The mo.switch basic is of course compatible with all common pushbutton controls such as the mo.unit blue/basic.
Technical Data
- Inner diameter: 22 mm and 1 inch
- Outer diameter housing: approx. 45 mm
- Width: 2 styli 22 mm, 3 styli 42.5 mm
