The further development of our bestseller - for all those who love a minimalist look. Suitable for left or right-hand installation. Everything is ready - quick and easy connection and wiring.
Note: The standard version features white LED buttons, but you can customize each button with your choice of five different LED colours for an additional $50.
Custom Colours can take up to 10 business days to process. Please reach out to us with your preferred colour configuration after purchasing this option. info@shopcaferacergarage.com
Options: White, Green, Blue, Red, Orange
Product Details

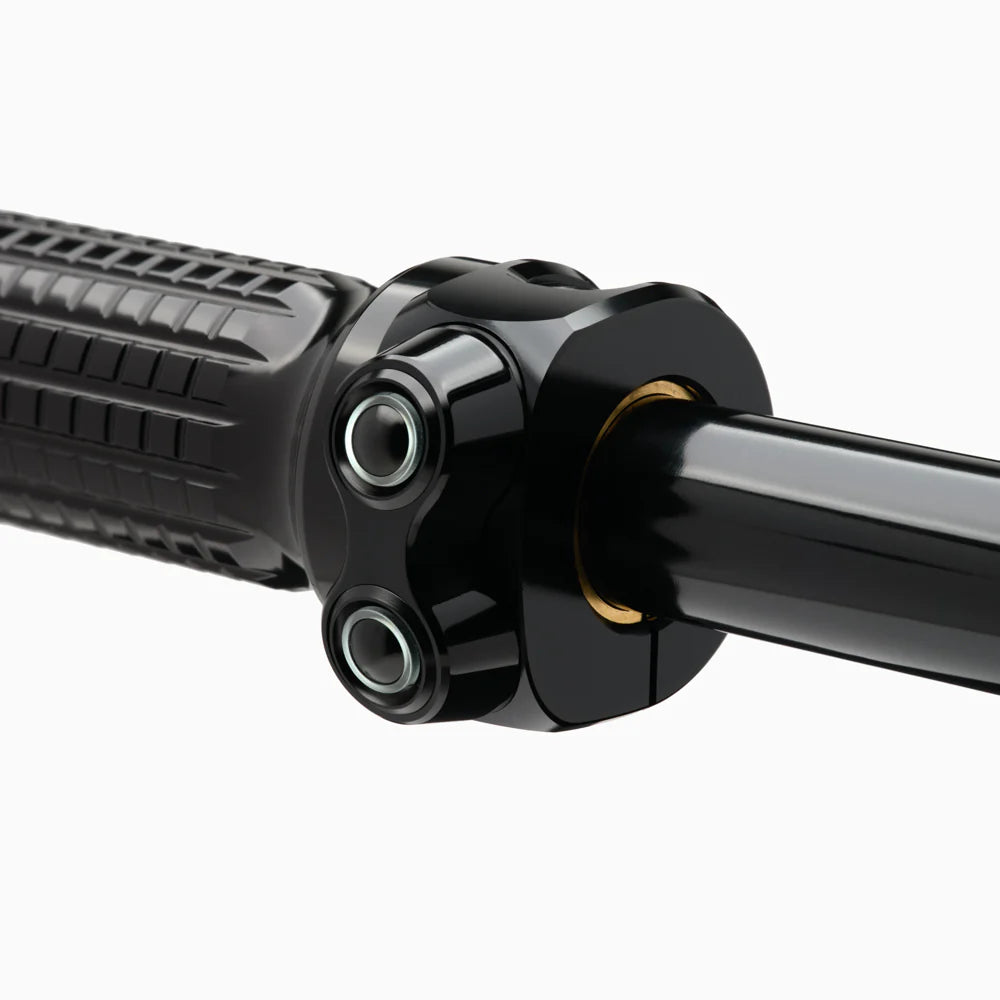

The mo.switch basic LED is a universal, high-quality push-button fitting for handlebars with a 1 inch or 22.2 mm (7/8 inch) tube diameter in a simple, elegant design. In conjunction with an electronic push-button control (not included), these CNC-manufactured push-button fittings can switch all electrical units such as lights, indicators, electric starter, horn and much more.

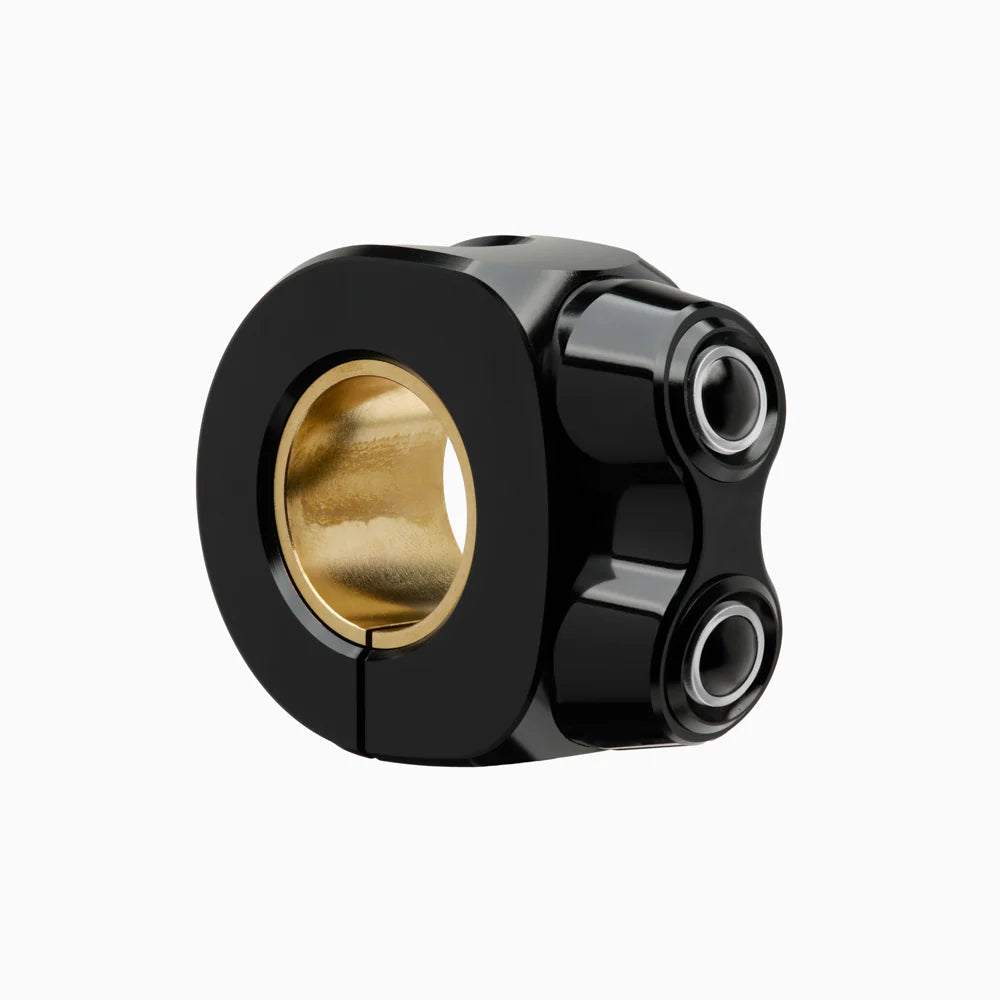

CNC machined from billet aluminum, the housing is anodized in gloss black.

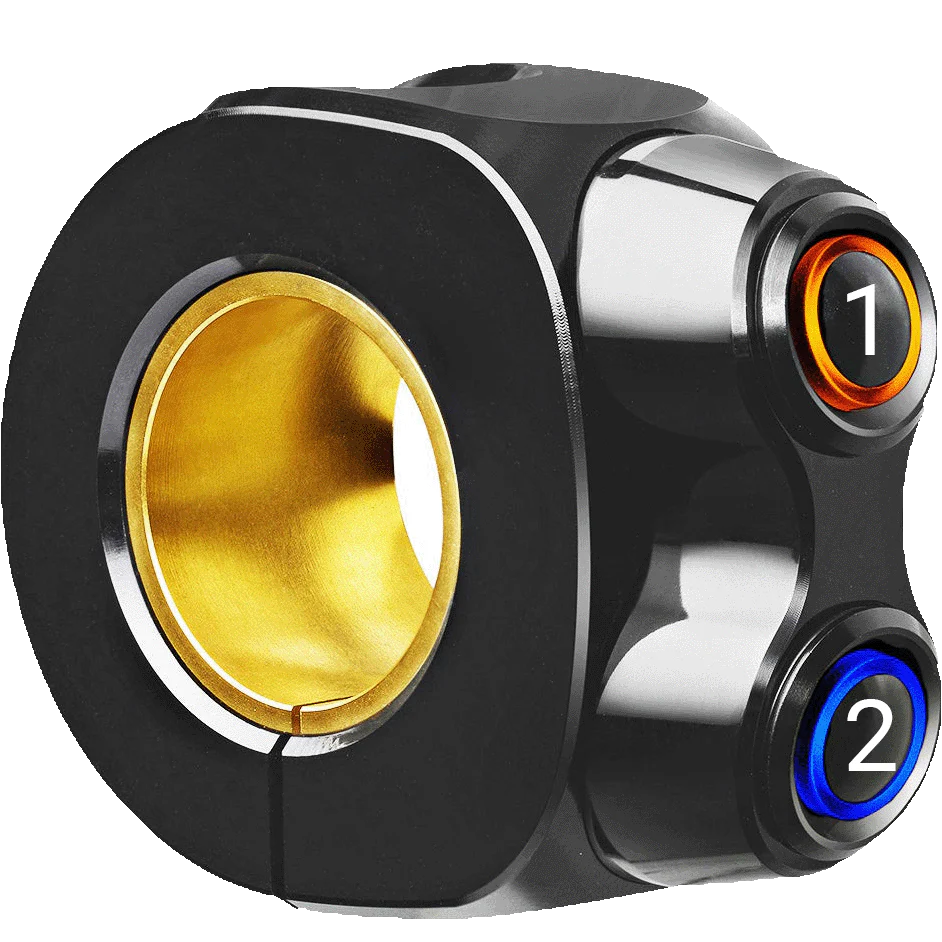

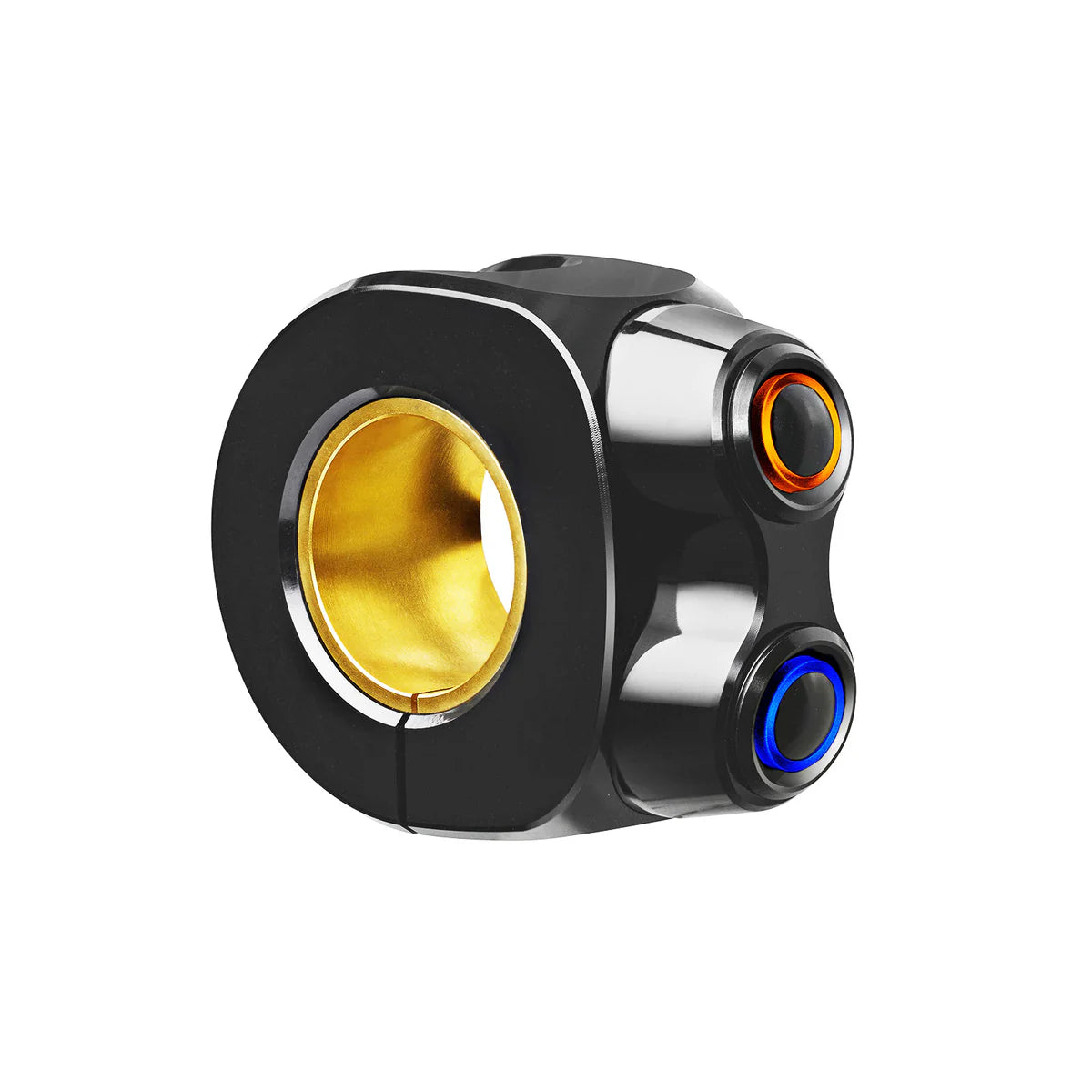

The individual push-buttons are of high quality, very robust and protected against vibrations and splash water (IP65). Standard version with white LED push-buttons. Each push-button color can be customized in 5 different LED colors.
Due to sufficient size and ergonomic pressure point (light, mechanical detent), they enable a safe switching feeling during operation - even when operated with a glove.

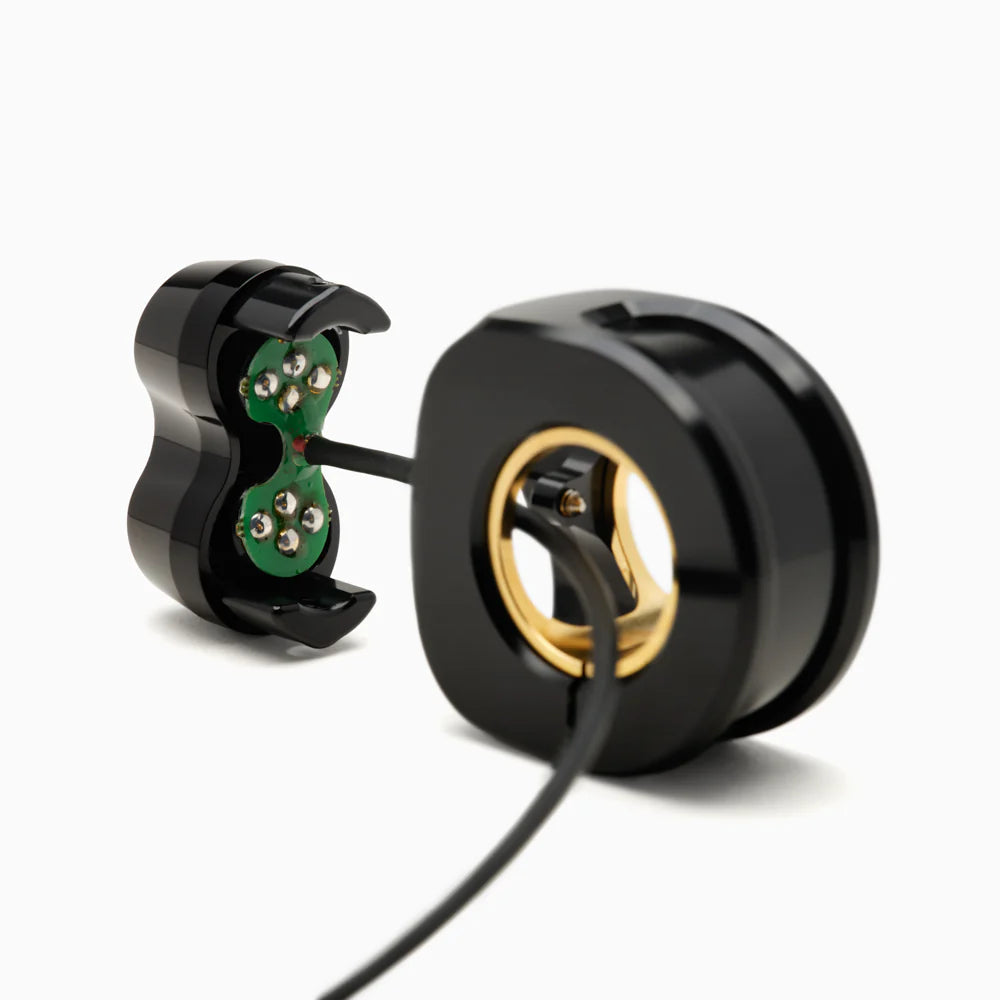

Due to two connections per pushbutton, a one-wire or two-wire circuit is easily possible. A connection for ground is already provided internally for the one-wire circuit. A cable routing in the handlebar is therefore easy to perform.
In case of possible damage, the probes are available individually and are replaceable.
Technical Data
- nner diameter: 7/8 and 1 inch
- Outer diameter housing: approx. 45 mm
- Width: 2 styli 22 mm, 3 styli 42.5 mm
- Pushbutton completely wired
- high quality connection cable with 1,8m length
- LED illuminated buttons, LED color selectable when ordering
- high quality CNC milled from solid material and anodized UV resistant
- Housing color black, button black, button LED color white
- maximum pushbutton switching current: 1A, all pushbuttons switch to ground
- additional switching electronics mo.unit required
